GinSan 504516 Brass 3-Way Single Valve Assembly Kit with Fittings
GinSan 504516 Brass 3-Way Single Valve Assembly Kit with Fittings

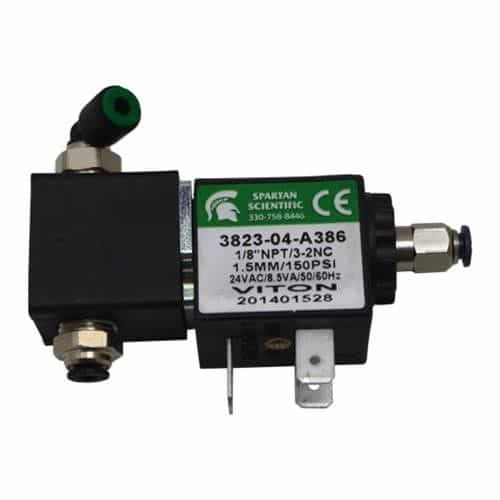

The Spartan Scientific Series 3823 is a normally closed composite body solenoid valve with a Viton seat. Includes fittings. 1.5mm Orifice, 24 VAC.
SPECIAL PRICE OFFERS
Product Description
3823 Series Solenoid
This valve components features include the proven Spartan Series 3800 solenoid operator, Viton seat and nylon encapsulated coil. The "basket" orifice design feature allows the possibility of changing the orifice diameter to meet flow requirements within a matter of seconds.
Specifications:
- Series 3823
- Viton seat
- Brass/Nylon internals
- 3 Way Valve Normally Closed
- 1.5mm Orifice
- 150 PSI
- 6.5 watts
- .08 Cv
- 24 VAC 50/60 Hz
- 1/8" NPT
- 8.5 VA
Technical Specifications
Technical Specifications
Product Reviews
3823 Series Solenoid
This valve components features include the proven Spartan Series 3800 solenoid operator, Viton seat and nylon encapsulated coil. The "basket" orifice design feature allows the possibility of changing the orifice diameter to meet flow requirements within a matter of seconds.
Specifications:
- Series 3823
- Viton seat
- Brass/Nylon internals
- 3 Way Valve Normally Closed
- 1.5mm Orifice
- 150 PSI
- 6.5 watts
- .08 Cv
- 24 VAC 50/60 Hz
- 1/8" NPT
- 8.5 VA
