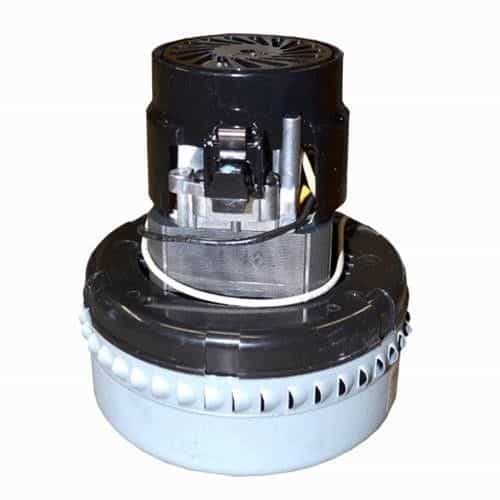

Ametek 115757-P Two Stage Peripheral Bypass Vacuum Motor - 120 Volt, 5.7 Inch, 18,034 RPM
Brand:
Mfr. Model #:
115757-P
KR Part #:
VAL5757
Weight:
5.23 lbs
Manuals
(0)This is a two-stage motor with a peripheral bypass system. Motor size is 5.7 inches. Operates using 120-Volt power connections.
Note: Designed to handle clean, dry air, and filtered air only.
Prop 65
Technical Specifications
Voltage AC: 120
RPM: 18,034
Product Description
120 Volt Motor
Ametek 116758-11 is a vacuum motor with a 2-stage peripheral bypass design. Compatible with 120-Volt electrical connections. Motor measures 5.7 inches. This motor runs at a maximum speed of 18,034 RPM. Features double ball bearings.
Specifications:
- Motor Type: Bypass
- Discharge: Peripheral
- Bearings: Ball Bearing/Sleeve
- Sealed Vacuum: 96 inches
- Maximum Air Watts: 292
- Maximum Air Flow: 96 CFM
- Maximum Amps: 8.0
- Motor Speed: 18,034 RPM
- Stage: 2
- Voltage: 120 Volt
