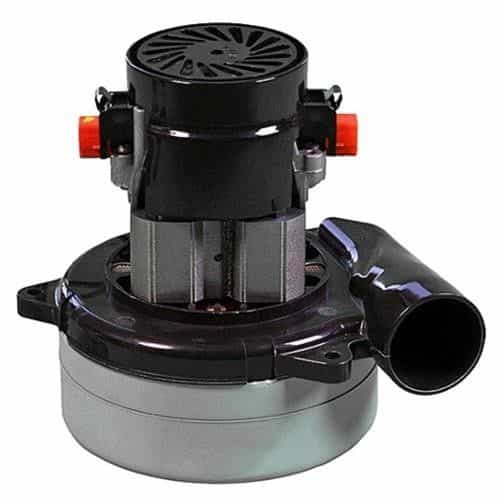

Ametek 116116-00 Two Stage Vacuum Motor - 120 Volt, 5.7 Inch, 17925 RPM

Brand:
Mfr. Model #:
116116-00
KR Part #:
VAL6116
Weight:
5.51 lbs
Out of Stock - Pre-Order Now
MSRP
$246.76
Now Only!
$184.16
starstarstarstarstar (0)
This is a two-stage motor with a tangential discharge system. Motor size is 5.7 inches. Compatible with 120-Volt power.
Prep 65

Prop 65

Drop Ship Icon

DROP SHIP

Technical Specifications

RPM: 17925
Voltage AC: 120

Product Description

120 Volt Motor

Ametek 116116-00 is a 2-stage tangential bypass vacuum motor. Suitable for 120-Volt power. Motor measures 5.7 inches. This motor runs at a maximum speed of 17.925 RPM. Features double ball bearings.

Specifications:

  • Motor Type: Bypass
  • Discharge: Tangential
  • Stages: 2
  • Bearings: Double Ball Bearing
  • Size: 5.7" / 145 mm diameter
  • Maximum Air Watts: 250
  • Maximum Air Flow: 97 CFM
  • Voltage: 24
  • Sealed Vacuum: 81.8 inches
  • Maximum Amps: 8.2
  • Motor Speed: 17,925 RPM

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm (For more information go to www.p65warnings.ca.gov).
