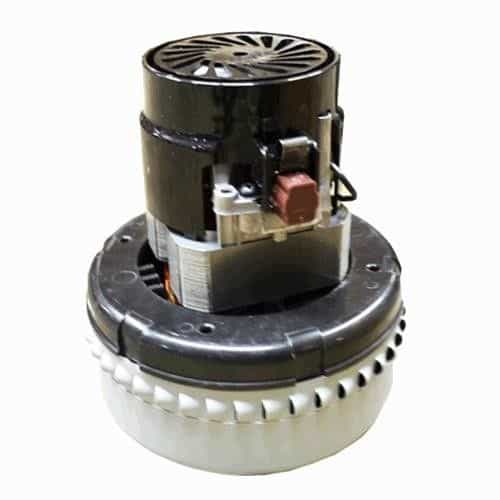

Lamb-Ametek 116125-01 Two-Stage 240V Motor for Car Wash Vacuum Unit - 3.6 Amps
Brand:
Mfr. Model #:
116125-01
KR Part #:
VAL6125
Weight:
5.06 lbs
Availability:
1
Technical Specifications
Amps: 3.6
CFM: 87.7
Voltage AC: 240
Product Description
240 Volt Replacement Vacuum Motor
The Lamb-Ametek 116125-01 motor measures 5.7" in diameter and operates at 240 volts and a maximum of 3.6 amps. Features a double ball bearing system, a peripheral bypass discharge, and an open frame design. Replacing a non-functioning motor is a cheaper option than purchasing an new vacuum unit! Get your vacuum back up and running again!
Specifications:
- Two stage
- 240 volt
- 50/60 Hz
- 3.6 amps
- 5.7" diameter
- 87.7 CFM
- Double ball bearings
- Single speed
- Peripheral bypass discharge
- Thermoset plastic fan end bracket
- Aluminum commutator bracket
- Open frame design
- 76.2" sealed vacuum
- 220 maximum air watts
- 22,550 RPM maximum motor speed
- CSA Certified
- UL Listed
