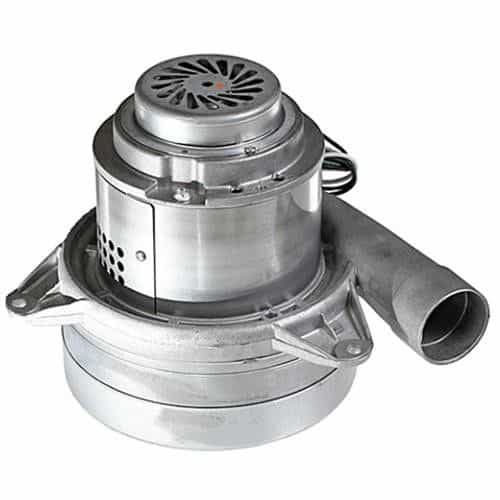

Lamb Ametek 116136-00 Bypass 3-Stage 240V Vacuum Motor - 1 Speed, 91.8 CFM, 7.2 in. Diameter
Brand:
Mfr. Model #:
116136-00
KR Part #:
VAL6136
Weight:
9.20 lbs
(0)Aluminum three-stage, one-speed vacuum motor. 7.2" diameter, dual ball bearing, 91.8 CFM air flow.
Prop 65
DROP SHIP
Technical Specifications
CFM: 91.8
Voltage AC: 240
Amps: 5.5
RPM: 19714
Product Description
91.8 CFM Commercial Vacuum 3 Stage Motor
Lamb Ametek is a respected and trusted name in car wash vacuums. The Lamb Ametek 116136-00 motor is a three-stage, single-speed, tangential bypass thru-flow motor with an 7.2" diameter aluminum body. Skeleton frame motor with carbon brushes.
Specification:
- Tangential bypass discharge
- 3 blower stages
- 1 speed
- Motor Speed: 19714
- Open motor enclosure design
- CFM @ 2" Orifice: 91.8
- 240 volt AC
- 60 Hz
- 5.5 amps
- Single phase
- 339 maximum air watts
- Lug motor mounting type
- All angle motor mounting position
- Double ball bearings
- Carbon brushes
- 7.2" frame diameter
- Aluminum mounting brackets
- Intermittent duty
- 1500 hour average life
- UL recognized
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm (For more information go to www.p65warnings.ca.gov).
