120 Volt Replacement Vacuum Motor

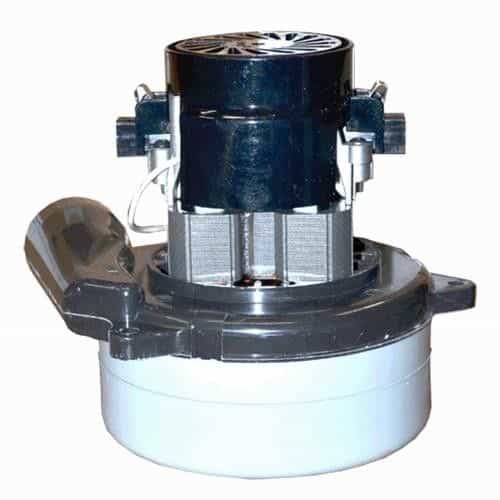

The Lamb-Ametek 116207-00 motor measures 5.7" in diameter and operates at 120 volts and a maximum of 9 amps. Features a double ball bearing system, a tangential bypass discharge, and an open drip proof enclosure. Replacing a non-functioning motor is a cheaper option than purchasing an new vacuum unit! Get your vacuum back up and running again!

Specifications:

• Two stage
• 120 volt

• 50/60 Hz

• 9 amps

• 5.7: diameter

• 300 maximum air watts

• 104 CFM @ 2 inches

• 91.3" sealed vacuum

• 19,194 RPM maximum motor speed

• Tangential bypass discharge

• Dual ball bearings

• Single speed

• Thermoset fan end bracket

• Aluminum commutator bracket

• Skeleton frame design

• Epoxy painted fan case

• CSA Certified

• UL Listed
