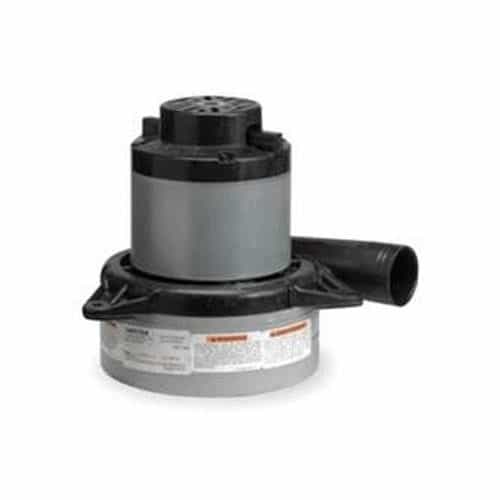

Tangential Motor

This is a 3-stage vacuum motor with double ball bearings and operates at a single speed. The motor reaches speeds of 21,425 RPM. Suitable for 120-Volt power. Features a tangential air discharge system.

Specifications:

• Item: Vacuum Motor

• Motor Application: Universal AC/DC

• Phase: Single

• Motor Design: Universal AC/DC

• Nameplate RPM: 21,425

• No. of Speeds: 1

• Voltage: 120V AC

• Full Load Amps: 12.7

• Motor/Blower Type: Bypass

• Max. Amps: 12.7 A

• Hz: 60/50

• Motor Thermal Protection: None

• Insulation Class: A

• Max. Ambient Temperature: 40 Degrees C

• Duty Cycle: Intermittent

• Motor Enclosure Design: Open

• Motor Mounting Type: Lug

• Motor Mounting Position: All Angle

• Max. Air Watts: 406 W

• Vacuum Rating: 134.1

• CFM @ 2-In. Orifice: 94 cfm

• Motor Bearings: Ball

• Bearing Protection: Air Sealed

• Blower Stages: 3

• Average Life: 700 hr

• Overall Length: 8 5/8 in

• Overall Height: 7 11/64 in

• Body Diameter: 7.2 in

• Inlet Tube Diameter: 2 in

• Discharge: Tangential Bypass

• Replacement Brushes: Mfr. No. 33410-2

• Standards: CSA (LR31393), UL (E47185)


Features:

• Three stage

• 120 volts

• 7.2"/183 mm diameter

• Double ball bearings

• Single speed

• Tangential bypass discharge

• Thermoset fan end bracket

• Thermoset commutator bracket
