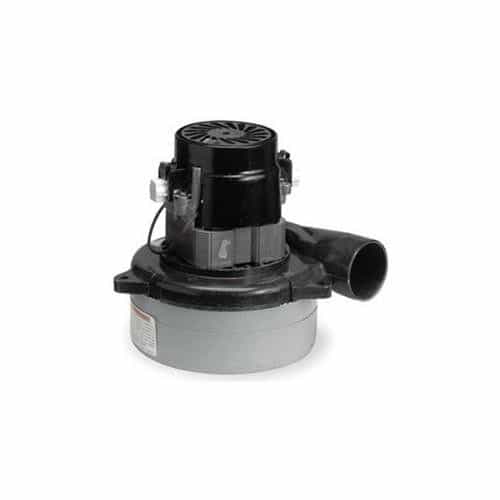

Lamb-Ametek 116513-13 Three-Stage 36VDC Car Wash Vacuum Motor - 17.9 Amps
Brand:
Mfr. Model #:
116513-13
KR Part #:
VAL6513
Weight:
6.80 lbs
(0)Three stage replacement motor for car wash vacuums. 36 volt, 17.9 amps.
Prop 65
DROP SHIP
Technical Specifications
Amps: 17.9
CFM: 76
Voltage DC: 36
Product Description
36 Volt Car Wash Vacuum Motor
When one of your vacuum motors is not functioning, swapping in a new motor is a less costly option than replacing the entire vacuum unit. This Lamb-Ametek 116513-13 motor will have your car wash vacuum back to full functionality in no time! It is a three-stage, 36 volt, 17.9 amp motor measuring 5.7" in diameter. Boasts dual ball bearings, a tangential bypass discharge, and a skeleton frame design.
- Three stage
- 36 volt DC
- 17.9 maximum amps
- 5.7" diameter
- 7 13/16" overall height
- Dual ball bearings
- Single speed
- Thermoset fan end bracket
- Aluminum commutator bracket
- Intermittent duty
- Tangential bypass discharge
- Open enclosure motor design
- 76 CFM maximum air flow @ 2" orifice
- 185 maximum air watts
- Lug motor mounting type
- Universal AC/DC motor design
- Insurance class A
- Dual ball bearings
- Thermoset mounting brackets
- UL Listed
