RC SERIES REMOTE CONTROL SYSTEM

TRANSMITTER & RECEIVER

Features:
•    System Complies With FCC Part 15
•    Uses Wireless RF, Not Power Wires To Transmit Signal - replacement push button available
•    Range: Up to 1000 Feet (450 Feet Typical)
•    Omnidirectional Antenna for Superior Reception - replacement antenna available
•    Built-in 5 Minute 'Start Circuit Enable' Timer
•    20 Ampere 1HP @ 125 VAC Relay Output Rating
•    12VDC Vend Counter Output

Parts:

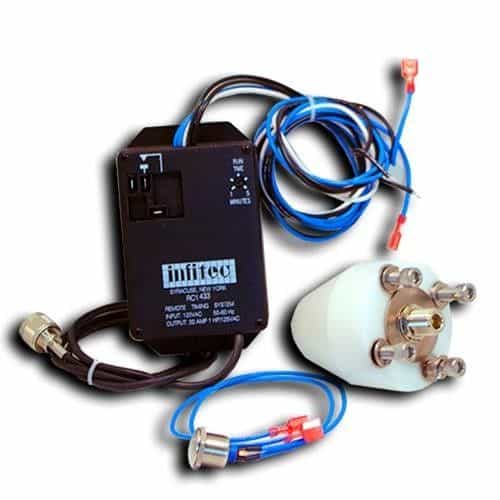

RECEIVER RC1433-C
1. Input
1.1 Operating Voltage: 120 VAC
1.2 Tolerance: ±15% of Nominal
1.3 Frequency: 50 - 60 Hertz
1.4 RF Operating Frequency: 433MHz
1.5 Range: Up to 1000 Feet (Depending on conditions)
450 Feet Typical
2. Output
2.1 Type: Electromechanical Relay
2.2 Form: SPST, N.O.
2.3 Rating: 20 Amperes, 1HP @ 125 VAC
2.4 Life: Electrical - Full Load - 100,000 Operations
 Mechanical - 10,000,000 Operations
3. Mechanical
3.1 Mounting: End Mounting Ears, #8 Screw Clearance
(2 Places)
3.2 Termination: Wire Leads - 25" Minimum With 1/4" Quick
Connect Terminals (Supplied)
(2) Black, (2) Blue, (1) White
(2) 1/4" Male Quick Connect (Integral to Relay)
3.3 Style: Surface Mount/Encapsulated
3.4 Antenna: ANT1433-A - External Omnidirectional
(Mount to Top of Enclosure)
NOTE: ALL COMPONENTS SHOULD BE MOUNTED AS
FAR AWAY FROM COMPRESSOR AS POSSIBLE
4. Protection
4.1 Transient: Movistor Protected to 10 Joules
4.2 Dielectric Breakdown: 1500 Volts RMS Minimum
5. Environmental
5.1 Operating Temperature: -20°C to +75°C
5.2 Storage Temperature: -30°C to +85°C
5.3 Humidity: 95% Relative, Non-Condensing

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm (For more information go to www.p65warnings.ca.gov).
