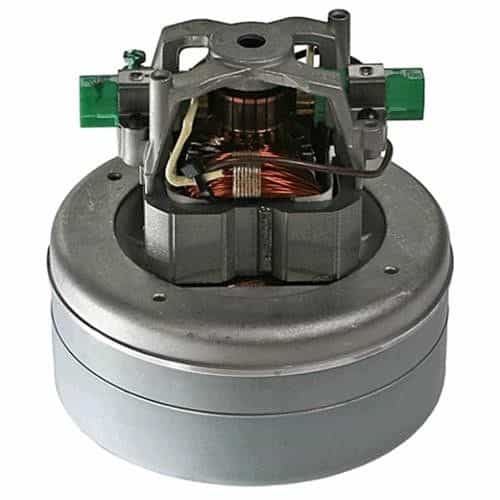

Ametek 116432-00 Two Stage Peripheral Bypass Vacuum Motor - 120 Volt, 5.7 Inch, 22,642 RPM
Brand:
Mfr. Model #:
116432-00
KR Part #:
VAL6432
Weight:
5.06 lbs
(0)This is a two-stage motor with a peripheral bypass system. Motor size is 5.7 inches. Operates using 120-Volt power connections.
Prop 65
DROP SHIP
Technical Specifications
RPM: 22,642
Voltage AC: 120
Product Description
Thru Flow Motor
Ametek 116432-00 is a vacuum motor with a 2-stage thru flow peripheral bypass design. Compatible with 120-Volt electrical connections. Motor measures 5.7 inches. This motor runs at a maximum speed of 22,642 RPM. Features double ball bearings.
Specifications:
- Motor Type: Thru Flow
- Discharge: Peripheral
- Bearings: Double Ball Bearing
- Sealed Vacuum: 114.4 inches
- Maximum Air Watts: 365
- Maximum Air Flow: 101.3 CFM
- Motor Speed: 22,642 RPM
- Stage: 2
- Voltage: 120 Volt
