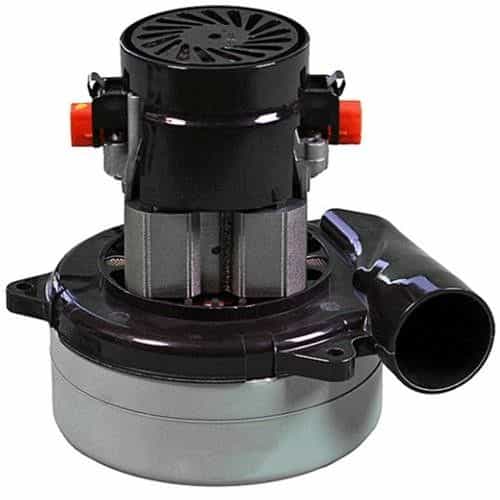

Ametek 116210-85 Tangential Bypass Vacuum Motor - 2 Stage, 120 Volt, 5.7 Inch, 18,034 RPM
Brand:
Mfr. Model #:
116210-85
KR Part #:
VAL6210-85
Weight:
4.90 lbs
(0)A new 5.7" motor for vacuums. Designed with a tangential discharge system. Handles a maximum speed of 18,034 RPM.
Note: This motor has 1 7/8 inch tube on the base of the motor.
Note: This motor has 1 7/8 inch tube on the base of the motor.
Prop 65
DROP SHIP
Technical Specifications
Voltage AC: 120
RPM: 18034
Amps: 8.2
Product Description
2 Stage Vacuum Motor
The Ametek 116210-85 is a replacement 2 stage motor for vacuums at car washes. It features a tangential discharge and a bypass design. Motor size measures 5.7 inches. The maximum speed sustained is 18,034 RPM. It is compatible with 120 volt electrical connections.Specifications:
- Motor Type: Bypass
- Discharge: Tangential
- Bearings: Double Ball Bearing
- Sealed Vacuum: 97.4 inches
- Maximum Air Watts: 304
- Maximum Air Flow: 99.1 CFM
- Maximum Amps: 8.2
- Motor Speed: 18,034 RPM
- Voltage: 120 Volts
