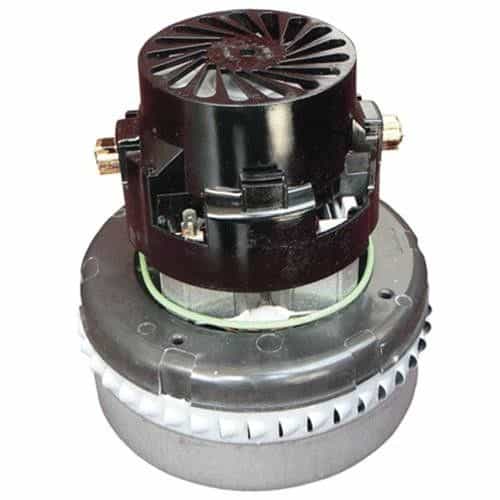

2 Stage 120V Vacuum Motor

The 119414-00 from Lamb Ametek is a high-quality, safe motor for commercial car wash vacuums, sprayer/foggers, utility vacuums, and central vacuuming units. Using an an 8-amp current and two blower stages, the 120V model produces high-end performance and will run smoothly over the long-term. Average lifespan measures 500 hours. The peripheral discharge vacuum AC motor has a design where air flows into the bottom of the motor and releases through vents in the motor.

A number of parts to know regarding the motor include a steel skeleton frame, dual ball bearings, a two-stage blower, and a lug motor mounting type. The motor will provide the type of availability you need, as each item used in manufacturing is tested and durable. Overall, the 2-stage motor is a popular order for folks who want to add a durable, high-performing vacuum motor to their shopping cart.

Vacuum Motor Specifications:

• Black motor housing
• 2-stage blower
• 120 volt at 8.0 amp
• 94.0 cfm at 2-inch orifice
• Dual ball bearings
• 1.6 horsepower
• Speeds: 1
• 50/60 Hz
• Peripheral bypass discharge
• Operating Temp: 32 degF - 104 degF
• 5.7" fan diameter
• Steel skeleton frame
• UL/CSA Recognized
• Motor mounting type: lug
• Maximum air watts: 274
• Overall height: 6 5/16"
• Average life: 500 hours
• SKU: VAL9414

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm (For more information go to www.p65warnings.ca.gov).
