Pyramid APEX7401-DB4 USA Bill Acceptor - 1-20 Dollars, MDB, 500 Note
Brand:
Mfr. Model #:
APEX7401-DB4USA
KR Part #:
PTAPEX7401-DB4
Weight:
3.30 lbs
(0)Pyramid Apex 7400 series bill validator comes with high security to guard against fraudulent bills.
Prop 65
DROP SHIP
Product Description

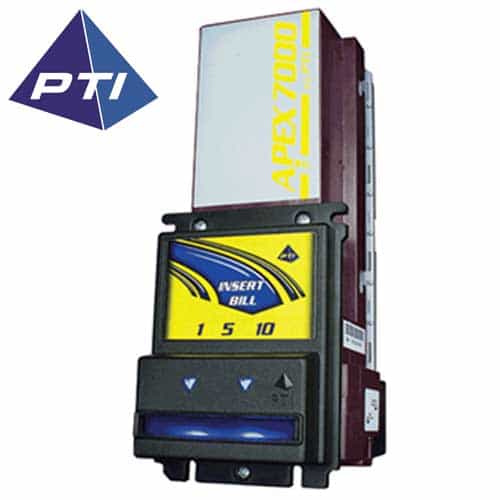

Pyramid 7401-DB4USA Bill Acceptor
Pyramid 7401-D54USA Bill Acceptor consistently cuts down on counterfeit fraud. MDB option No Mag. Head Coinco style bezel downstacker accepts $1, $5, $10, and $20 in US denominations. Cash box holds 500 bills. The Apex 7000 series has the same reliability as the 5000 series plus new customer friendly features like dip switches making it easier than ever to use.Illuminated arrows on bill entry
No more fraudulent bills!
- Includes dip switches for faster processing.
- Model APEX-7400-DB4-USA
- Lighted arrows on bill entry mechanism capture interest and increase usage
- High security against fraudulent bills
- Flash updates using a PC
- Multiple interfaces available (see below)
- Pinouts compatible with other manufacturers
- Dual-stage optical anti-stringing technology
- 12VDC standard or optional 120VAC internal power supply
- Bills up to 72mm wide accepted
- Automatic self-calibration; no user calibration required
Apex 7401-D54-USA Technical Specs
- No Mag. Head
- Coinco Style Bezel
- Downstacker
- 500 Bill Cash Box
- MDB Option
- Accepting $1, $5, $10, and $20 U.S. Currency
- Operating Voltage: 12 VDC (+/- 10%) standard, optional 120 VAC or 24 VAC supply available.
- Operating Currents: Idle: 180 mA Accepting: 500 mA Stalled: 1.50 A.
- Operating Temperature: .0C - 60C, 90 % non-condensing humidity.
- Acceptance Rate: Greater than 95%, including second time insertion of a rejected bill.
- Acceptance Speed: Approx. 20 bills per minute.
- Sensor Array: .8 Optical Sensors, one Magnetic Head. Mag. Head is standard on $50, $100 acceptor only.
- Bills Accepted: Up to 12 bills in all four directions.
- Net Weight Stackered Model: 2.3 lbs./1.04 kg.
- Net Weight Stackerless Model: 1.0 lbs./0.45 kg
