Lamb Ametek 116137-00 Bypass 3-Stage 120V Vacuum Motor - 1 Speed, 105 CFM, 7.2 in. Diameter

Brand:
Mfr. Model #:
116137-00
KR Part #:
VAL6137
Weight:
9.10 lbs
MSRP
$597.64
Now Only!
$437.72
starstarstarstarstar (0)
Aluminum three-stage, one-speed vacuum motor. 7.2" diameter and 7" height. Dual ball bearing, 105 CFM air flow.
Prep 65

Prop 65

Drop Ship Icon

DROP SHIP

Technical Specifications

CFM: 105
Voltage AC: 120
Amps: 14.7
RPM: 19500

Product Description

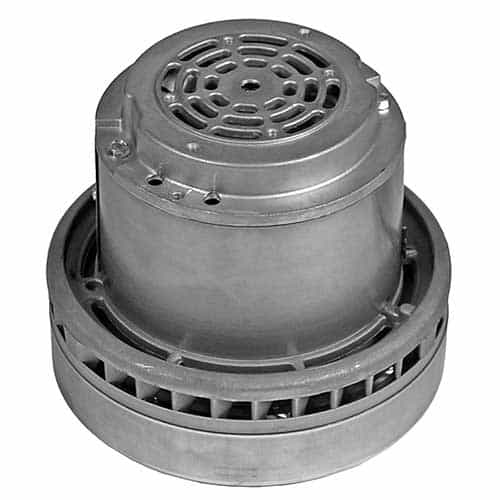

116137-00 Motor

Lamb Ametek is a respected and trusted name in car wash vacuums. The Lamb Ametek 116137-00 motor is a three-stage, single-speed, tangential bypass thru-flow motor with an 7.2" diameter aluminum body. Skeleton frame motor with carbon brushes.

  • Tangential bypass discharge
  • 3 blower stages
  • 1 speed
  • Motor Speed: 19500
  • Open motor enclosure design
  • CFM @ 2" Orifice: 105
  • 120 volt AC
  • 60 Hz
  • 14.7 amps
  • Single phase
  • 447 maximum air watts
  • Lug motor mounting type
  • All angle motor mounting position
  • Double ball bearings
  • Carbon brushes
  • 7.2" frame diameter
  • Aluminum mounting brackets
  • Intermittent duty
  • 1500 hour average life
  • UL recognized
