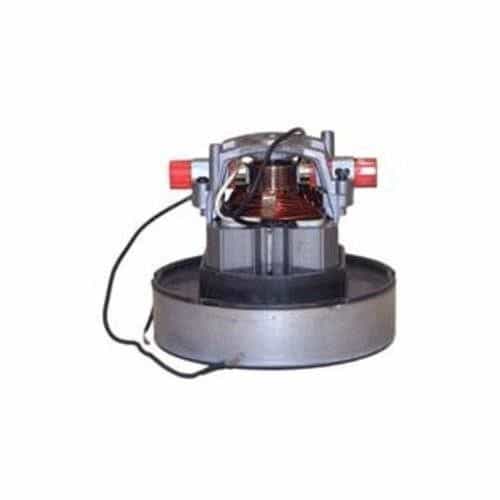

Lamb-Ametek 117760-00 One Stage 120V 5.7 in Vacuum Motor Unit - 10.4 Amps
Brand:
Mfr. Model #:
117760-00
KR Part #:
VAL7760
Weight:
3.90 lbs
Availability:
3
(0)Single stage replacement motor for car wash vacuums. 120 volt, 10.4 amp.
Prop 65
120 Volts
Technical Specifications
Amps: 10.4
CFM: 130.5
Voltage AC: 120
Max Temperature: 104 degrees F
Product Description
120 Volt Through-Flow Replacement Vacuum Motor
Get your commercial car wash vacuum working properly again with the Lamb-Ametek 117760-00 replacement motor. It is a single-stage, 120 volt, 10.4 amp motor measuring 5.7 inches in diameter. Boasts dual ball bearings, peripheral discharge, and a skeleton frame design.
- One Stage
- 120VAC
- 10.4 amps
- 50/60 Hz
- 5.7" diameter
- Skeleton frame
- Carbon brush type
- 32 deg-104 deg Fahrenheit operating temperature
- Intermittent duty
- Peripheral discharge
- 435 maximum air watts
- 130.5 CFM
- Double ball bearing
- 34,250 RPM motor speed
- UL Listed
