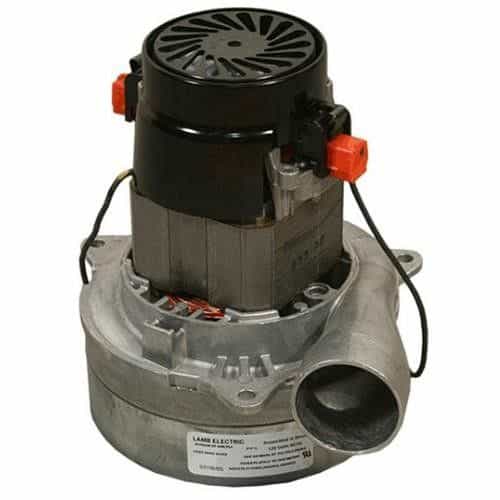

Ametek 119992-00 Two Stage Vacuum Motor - 120 Volt, 5.7 Inch, 32234 RPM
Brand:
Mfr. Model #:
119992-00
KR Part #:
VAL9992
Weight:
5.30 lbs
(0)This is a two-stage motor with a tangential discharge system. Motor size is 5.7 inches. Operates using 120-Volt power.
Prop 65
Technical Specifications
RPM: 32,234
Voltage AC: 120
Product Description
120 Volt Motor
Ametek 119992-00 is a 2-stage tangential bypass vacuum motor. Suitable for 120-Volt power. Motor measures 5.7 inches. This motor runs at a maximum speed of 32,234 RPM. Features double ball bearings.
Specifications:
- Motor Type: Bypass
- Discharge: Tangential
- Stages: 2
- Bearings: Double Ball Bearing
- Size: 5.7" / 145 mm diameter
- Maximum Air Watts: 577
- Maximum Air Flow: 126.2 CFM
- Voltage: 120
- Sealed Vacuum: 141.3 inches
- Maximum Amps: 15.6
- Motor Speed: 32,234 RPM
