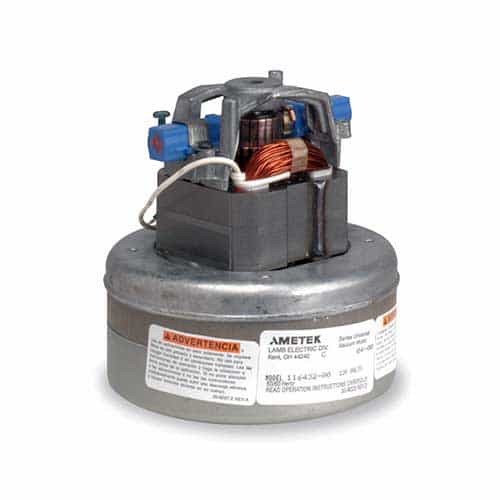

Ametek 116604-00 Motor 2-Stage, 240V, 5.7FRA
Brand:
Mfr. Model #:
116604-00
KR Part #:
VAL6604
Weight:
5.20 lbs
(0)A 5.7-inch frame motor for car wash vacuums. It accepts 240 VAC electrical connections. The motor handles a maximum speed of 20,175 RPM.
Prop 65
Product Description
240 VAC Vacuum Motor
Lamb Ametek 116604-00 is a replacement thru-flow motor with a peripheral discharge for vacuums at your car wash. The frame measures 5.7 inches in diameter to fit the footprint of the original on your vacuum. It is wired for compatibility with 240 VAC electrical connections. The maximum speed this motor can sustain is 20,175 RPM.
Specifications:
- Manufacturer: Lamb Ametek
- Product Number: 116604-00
- Motor Type: Thru Flow
- Discharge: Peripheral
- Bearings: Double Ball Bearing
- Sealed Vacuum: 101.5 inches
- Maximum Air Watts: 343
- Maximum Air Flow: 114.8 CFM
- Maximum Amps: 5.2
- Motor Speed: 20,175 RPM
- Voltage: 240 VAC
- Frame Size: 5.7"
