High Power Timing Control

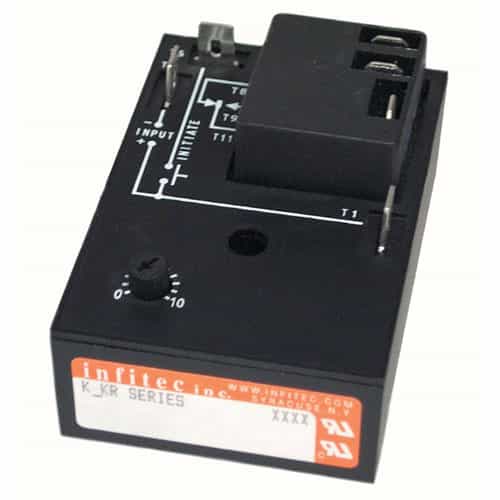

The Infitec KBKR timer has a 2 minute delay that begins when the initiate switch is opened. At the end of the time delay, output contacts revert to their original positions. A great choice in your car wash, this timer offers 0.5% repeat accuracy with no first cycle effect. Plus, it's designed to withstand harsh outdoor environments and requires no heatsinking! A 120 VAC electrical current is required. Please see attached specification sheet for wiring diagrams and additional connection information.

Dimensions: 2" x 3" x 1.5"

• High powered
• 120 VAC

• SPDT isolated electromechanical relay

• 2 minute delay
• +/- 0.5% accuracy
• +/- 10% setting accuracy
• 50 millisecond maximum reset time
• Fully encapsulated to withstand harsh environments
• Operating temperature range: -4° to 176° F
• Storage temperature: -22° to 185° F

• No heatsinking
• 0.25" quick connect

• Electrical components last up to 10,000 operations

• Mechanical components last up to 10,000,000 operations
