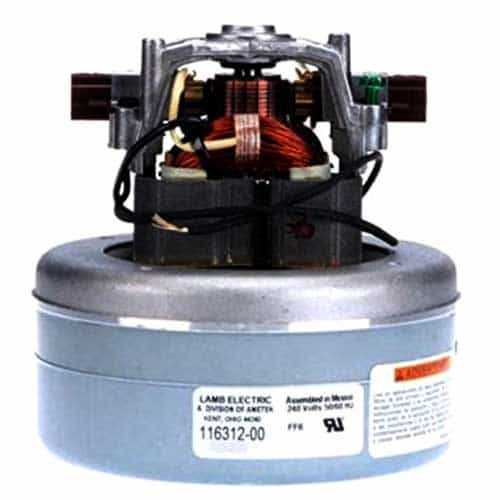

Ametek Motor 2stg 240v 5.7fr
Brand:
Mfr. Model #:
116312-03
KR Part #:
VAL6312
Weight:
4.20 lbs
(0)A 5.7-inch frame motor for car wash vacuums. It accepts 240 VAC electrical connections. The motor handles a maximum speed of 19,255 RPM.
Prop 65
DROP SHIP
Product Description
240 VAC Vacuum Motor
Lamb Ametek 116312-03 is a replacement tangential motor for vacuums at your car wash. The frame measures 5.7 inches in diameter to fit the footprint of the original on your vacuum. It is wired for compatibility with 240 VAC electrical connections. The maximum speed this motor can sustain is 19,255 RPM.
Specifications:
- Manufacturer: Lamb Ametek
- Product Number: 116312-03
- Motor Type: Bypass
- Discharge: Tangential
- Bearings: Ball Bearing/Sleeve
- Sealed Vacuum: 98.6 inches
- Maximum Air Watts: 281
- Maximum Air Flow: 106.5 CFM
- Maximum Amps: 4.2
- Motor Speed: 19,255 RPM
- Voltage: 240 VAC
- Frame Size: 5.7"
