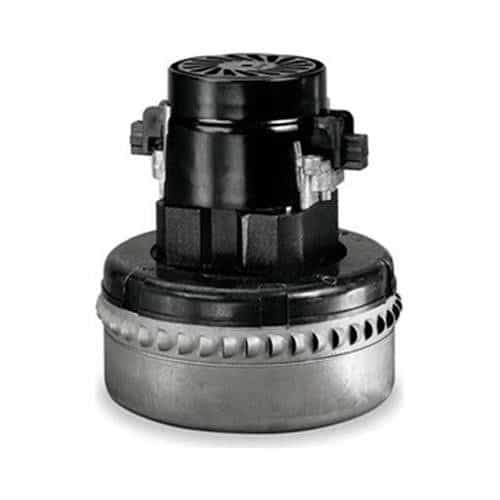

Vacuum Motor with Painted Fan Case and Air Seal

The Lamb-Ametek 116354-13 motor measures 5.7" in diameter and operates at 240 volts and a maximum of 5.7 amps. Features a double ball bearing system, a peripheral bypass discharge, and an open frame design. Replacing a non-functioning motor is a cheaper option than purchasing an new vacuum unit! Get your vacuum back up and running again!

This is the same motor as a Lamb-Ametek model 116354-00, but with an epoxy painted fan case and patented Air Seal Bearing Protection.

Dimensions: 5.7" Diameter x 7" Height

Technical Details:

• Two stage
• 240 volt
• 60/50 Hz
• 5.7 amps
• 5.7" diameter
• 107 CFM @ 2" orifice
• Double ball bearings
• Single speed
• Peripheral bypass discharge
• Thermoset plastic fan end bracket
• Aluminum commutator bracket
• Open frame design
• 97.8" sealed vacuum
• 389 maximum air watts
• Intermittent duty
• CSA Certified
• UL Listed
• Epoxy painted fan case
• Air seal bearing protection

Use These Replacement Brushes:

• 33508 (KR P/N: VAL33508)
