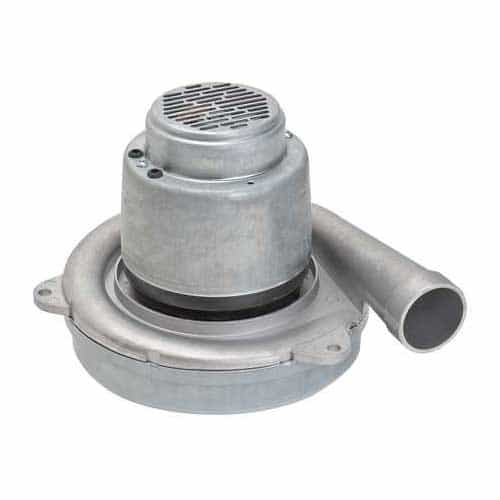

Ametek 122502-00 Two Stage 120VAC Vacuum Motor - 8.4 inch, 15.3 Amps
Brand:
Mfr. Model #:
122502-00
KR Part #:
VAL2502
Weight:
5.00 lbs
(0)Tangential bypass 8.4" diameter motor. 2 stages, 120 volt AC. Double stage motor. Compatible with 120 volt AC power.
DROP SHIP
Technical Specifications
Amps: 15.3
Voltage AC: 120
Product Description
The Ametek 122502-00 is a high-performance double stage motor designed for commercial and industrial vacuums. This vac model has a 8.4" diameter and a true tangential bypass discharge bracket.
Specifications:
- 120 volt AC
- Double stage
- Diameter: 8.4"
- Motor Type: Bypass
- Discharge: Tangential
- Bearings: Double ball bearings; 10mm output
- Sealed Vacuum: 151.9
- Maximum Air Watts: 710 watts
- Maximum Air Flow: 137.1 CFM
- Maximum Amps: 15.3A
- Motor Speed: 29,824 RPM
- 3.5" high-efficiency lamination
Replacement Brushes:
- Part #8505967-50
Special Features:
- High-efficiency performance
- 1500+ hour life with eternity brushes
- Lamb "Green Power Label"
- UL Listed and cUL recognized, category PRGY2 (E47185)
Design Application:
- Commercial and residential central cleaning systems
- Car wash vacuum and blower systems
- Equipment operating in environments requiring separation of working air from motor ventilating air
- Designed to handle clean, dry, filtered air only
