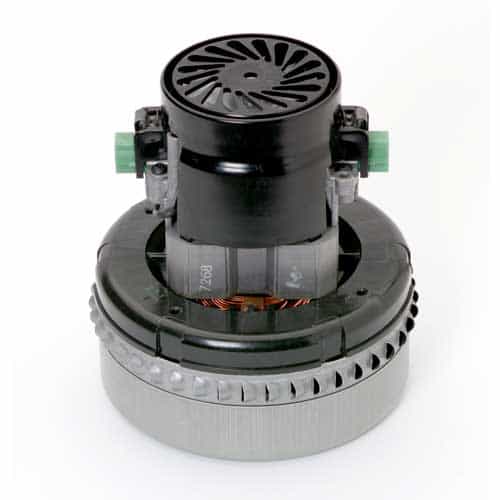

5.7" Vacuum Motor

The Ametek 116457-00 motor measures 5.7" in diameter and operates at 120 volts and a maximum of 7.7 amps. Features a double ball bearing system, thru flow discharge, and a skeleton frame design. Replacing a damaged or failing motor is a cheaper option than purchasing a new vacuum unit! Get your vacuum back to peak performance!

Specifications:

• 120 volt AC

• 50/60 Hz

• Double stage

• Diameter: 5.7"

• Single speed

• Thru flow discharge

• Aluminum fan end bracket

• Aluminum commutator bracket

• Motor Type: Bypass

• Discharge: Peripheral

• Bearings: Double ball bearings

• Sealed Vacuum: 90.2"

• Maximum Air Watts: 241 watts

• Maximum Air Flow: 94 CFM

• Maximum Amps: 7.7A

• Motor Speed: 18,093 RPM

• Weight: 5 lbs.

Replacement Brushes:

• 33384

Special Features:

• UL recognized; category PRGY2 (E47185)

• CSA certified, class 1611 01 (LR31393)

• Provision for grounding

• Skeleton frame design

• Thermal protection, automatic reset, UL category XEWR2 (E27701)


Design Application:

• Commercial and residential central cleaning systems

• Car wash vacuum and blower systems

• Equipment operating in environments requiring separation of working air from motor ventilating air

• Designed to handle clean, dry, filtered air only
