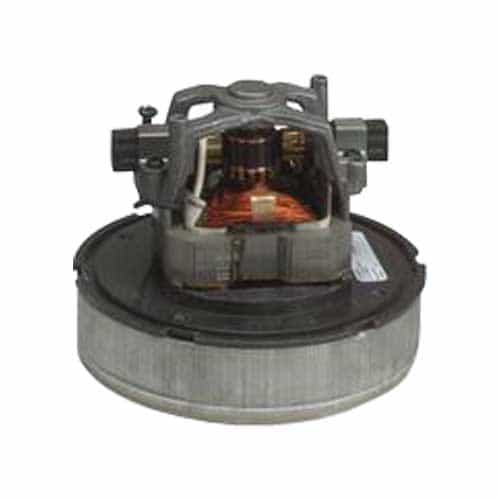

120 Volt Commercial Vac Motor

The Lamb-Ametek 119804-00 motor measures 5.1" in diameter and operates at 120 volts and a maximum of 12 amps. Features a double ball bearing system, a thru-flow discharge, and a skeleton-frame frame design. Replacing a non-functioning motor is a more economical option than purchasing an new vacuum unit! Get your commercial vacuum back up and running again!

The 119804-00 motor is designed for handling clean, dry, filtered air in environments that do NOT require separation of working air from motor ventilating air.

Technical Details:

• 1 stage

• 120 volt

• 60/50 Hz

• 12 amps

• 5.1" diameter

• 138.4 CFM maximum air flow

• Double ball bearings

• Single speed

• Through flow discharge

• Thermoset plastic fan end bracket

• Stamped steel end bracket

• Skeleton frame design

• Tapered bottom

• 95.4" sealed vacuum

• 478 maximum air watts

• 34,605 maximum motor speed

• UL Listed; category PRGY2 (E47185)

Use These Replacement Brushes:

• Ametek 50-5911 Vacuum Brushes
