Interval Time Delay Module

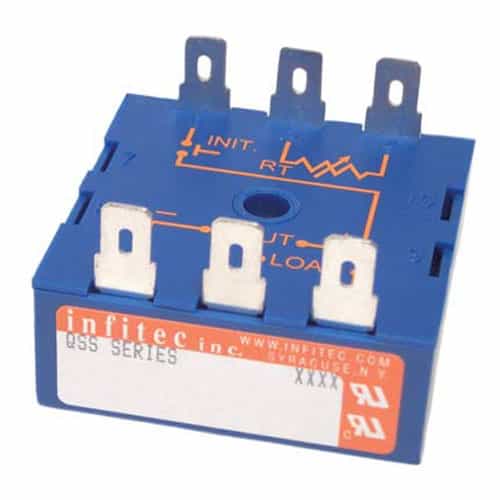

The Infitec QIS5117 is an interval time delay module, set as a fixed 17 second delay. Upon application of power to the input terminals, the output contact immediately transfers and the time delay begins. At the completion of the pre-selected time delay, the output contact reverts to its original position. Reset is accomplished by removal of input power.

Features:

• C/MOS Digital Circuitry
• Fixed 17 second delay
• No First Cycle Effect
• Fully Solid State and Encapsulated
• 0.5% Repeat Accuracy
• Seven Different Modes of Operation
• Output Rated at 1 Ampere Continuous, 10 Amperes Inrush
• Fixed, Local, or Externally Adjustable Time Delays
• Small Size
• UL/cUL Recognized
