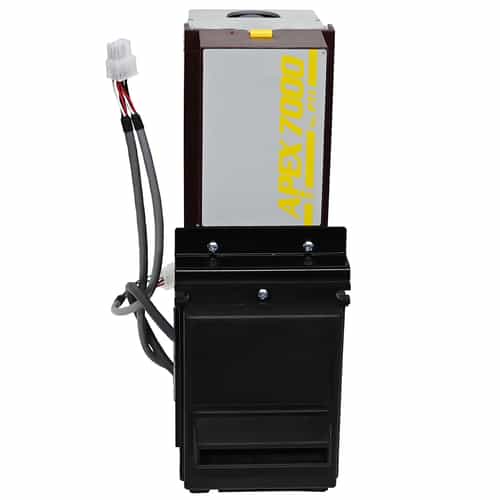

Pyramid APEX7401-UB4 APEX Validator with MDB Harness, CoinCo Bezel - 1 to 20 Dollar Bills
Brand:
Mfr. Model #:
APEX7401-UB4
KR Part #:
PTAPEX7401-UB4
Weight:
3.20 lbs
Availability:
6
(0)The Pyramid APEX7401-UB4 Bill Validator is ideal for use in vending applications. It accepts $1, $5, $10, and $20 bills in all four directions. This model includes an MDB harness, CoinCo style bezel, and 500-bill non-locking plastic cassette in upstacker configuration. No magnetic head. From the APEX 7000 Series, this validator offers simple operation and setup, as well as high security against stringing and counterfeit bills.
Product Description
Pyramid APEX 7000 Validator for Vending
Pyramid APEX 7000 Validator for Vending
The Pyramid APEX7401-UB4 is a high-functioning and secure bill validator from their APEX 7000 Series. This validator accepts $1-20 bills and a CoinCo style bezel. It includes an MDB power supply, so it's designed for use in vending machine applications. It has simple DIP switch configuration and easy setup. Additionally, it boasts dual-stage optical anti-stringing technology and excellent security against counterfeit notes.
Features
- Greater than 95% acceptance rate (including second-time insertion of rejected bill)
- Acceptance speed of approximately 20 bills per minute
- Reliability – With over 15 years in the field and counting, the Apex 7000 Series is the benchmark for stability and resilience
- Security - The highest security against fraudulent bills, with dual-stage optical anti-stringing technology
- Simple DIP switch and PC Configuration
- Easy to update
- High security against counterfeits
- Easy on-board diagnostics
- Automatic self-calibration
- Flash downloadable software using a PRO1 handheld programmer or Windows PC
- On-board push button/LED and advanced diagnostics via PC
- Bills up to 72mm wide accepted
- 2-year manufacturer warranty, parts and labor
Specifications
- Accepts $1, $5, $10, and $20 bills in all four directions
- MDB power supply
- Coinco style bezel
- No magnetic head
- Upstacker
- 500-bill non-locking plastic cassette
- 8 optical sensor array
- 32° to 140° Fahrenheit, 90% non-condensing humidity
For more detailed information, please see the documents listed under "Manuals" on this page. The documents include a model number selection breakdown to help you understand exactly what model will be ideal for your application. Pyramid also has additional resources, like APEX 7000 cleaning instructions and acceptor tools instructions, to help you operate your validator.
