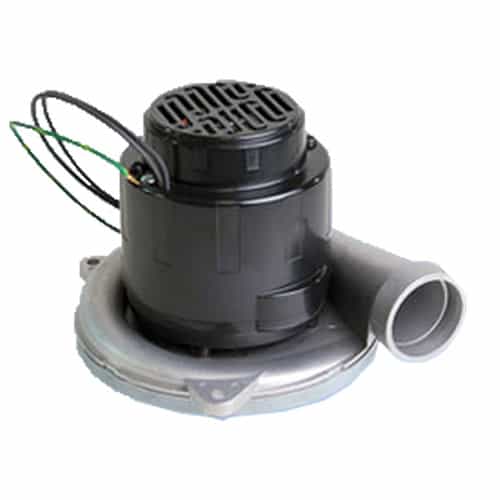

6.6 Tangential Bypass Motor

Lamb brushed vacuum motors feature rotating and stationary fans, a patented Eternity brush system and wet bearing protection. These upgrades drive more efficiency, extend brush life up to 3,000 hours. Enhanced II bearing protection prevents grease from washing out of the bearings. Designed to handle clean, dry, filtered air only.

Specifications:

• Replaces Mytee C347 motor
• 120 VDC
• Tangential output
• Single fan stage
• Replacement brush kit 8505967-50
• 6.6" Frame Premier Platform Motor
• Standard curved brush
• 1750 Watt power level
• For commercial and residential cleaning systems
• High-Efficiency "Galaxy" lamination
• Double ball bearings; 10mm output
• CAN & US UL recognition marked cRUus
• Categories PRGY2/PRGY8

• File #s E47185 & E56617 (Class B)



WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm (For more information go to www.p65warnings.ca.gov).
